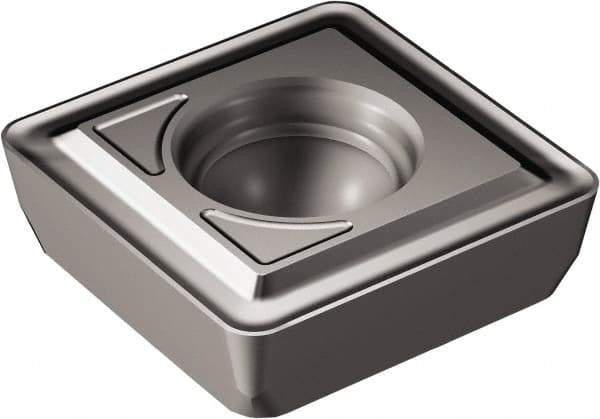

Sandvik Coromant - 880040305 GM Grade 4344 Carbide Indexable Drill Insert - TiAlN2 Finish, Square, 7.4mm Inscribed Circle
Item #: 49334840
Brand: Sandvik Coromant
Model #: 6770734
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 880 |
| Insert Size | 040305 |
| Material | Carbide |
| Manufacturer's Grade | 4344 |
| Inscribed Circle (mm) | 7.40 |
| Inscribed Circle (Decimal Inch) | 0.2913 |
| Thickness (mm) | 2.80 |
| Thickness (Decimal Inch) | 0.1102 |
| Corner Radius (mm) | 0.50 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Shape | Square |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Coating | TiAlN2 |
| Coating Process | PVD |
| Cutting Direction | Right Hand |
| Chipbreaker | GM |
