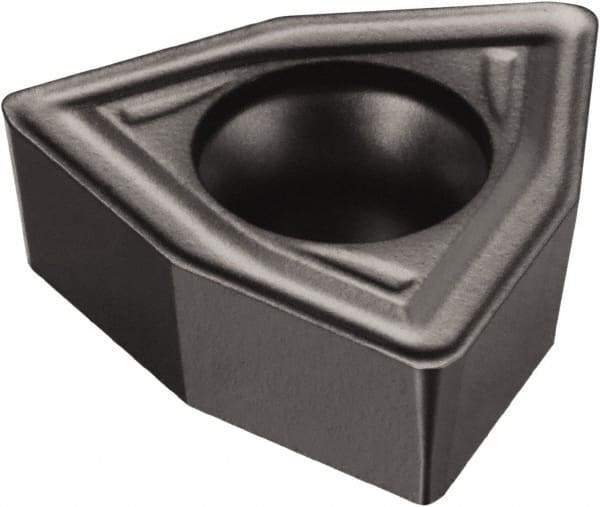

Sandvik Coromant - WCMX06T304 WM Grade 3040 Carbide Indexable Drill Insert - TiCN/Al2O3 Finish, Trigon, 3/8" Inscribed Circle
Item #: 49334741
Brand: Sandvik Coromant
Model #: 5756182
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WCMX |
| Insert Size | 06T304 |
| Material | Carbide |
| Manufacturer's Grade | 3040 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3752 |
| Thickness (mm) | 3.97 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Shape | Trigon |
| Length (mm) | 6.52 |
| Length (Decimal Inch) | 0.2567 |
| Hole Diameter (mm) | 3.70 |
| Hole Diameter (Decimal Inch) | 0.1457 |
| Relief Angle | 7 |
| Coating | TiCN/Al2O3 |
| Coating Process | MTCVD |
| Cutting Direction | Right Hand |
| Chipbreaker | WM |
