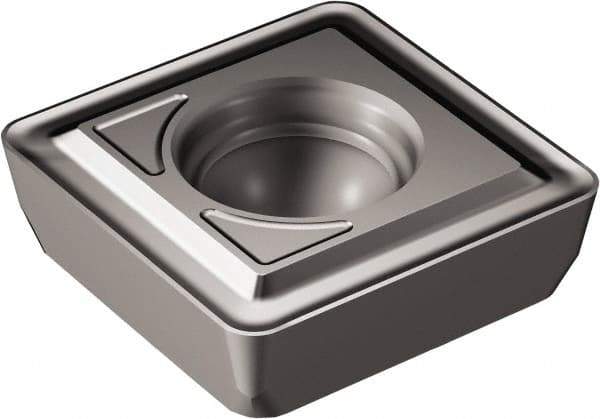

Sandvik Coromant - 880030306 GR 4344 Grade Carbide Indexable Insert Drill - TiAlN2 Coated, Square, 0.2362" Inscr Circle, 0.1024" Thick, 0.0236" Cnr Rad
Item #: 49334717
Brand: Sandvik Coromant
Model #: 6770731
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 880 |
| Insert Size | 030306 |
| Material | Carbide |
| Manufacturer's Grade | 4344 |
| Inscribed Circle (mm) | 6.00 |
| Inscribed Circle (Decimal Inch) | 0.2362 |
| Thickness (mm) | 2.60 |
| Thickness (Decimal Inch) | 0.1024 |
| Corner Radius (mm) | 0.60 |
| Corner Radius (Decimal Inch) | 0.0236 |
| Shape | Square |
| Hole Diameter (mm) | 2.50 |
| Hole Diameter (Decimal Inch) | 0.0984 |
| Coating | TiAlN2 |
| Coating Process | PVD |
| Cutting Direction | Right Hand |
| Chipbreaker | GR |
