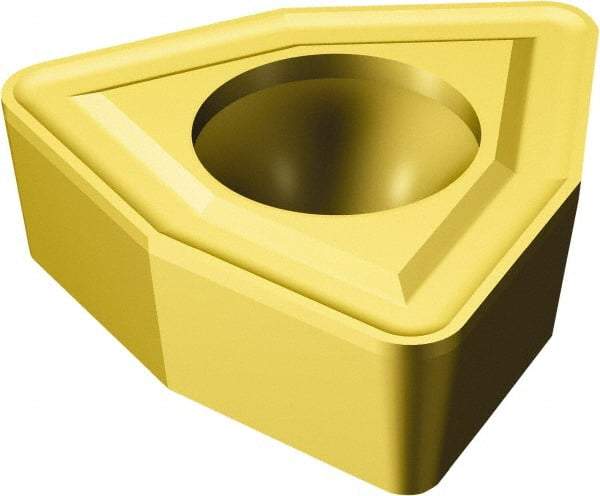

Sandvik Coromant - WCMX06T308 56 235 Grade Carbide Indexable Insert Drill - TiCN/TiN Coated, Trigon, 3/8" Inscr Circle, 0.1563" Thick, 0.0315" Cnr Rad, 7° Relief Angle
Item #: 49334659
Brand: Sandvik Coromant
Model #: 5756133
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiCN/TiN is a multi-layered coating designed to increase tool life. It is commonly used at high cutting speeds for smoothing and finishing of the workpiece.
| Product Specifications | |
|---|---|
| Insert Style | WCMX |
| Insert Size | 06T308 |
| Material | Carbide |
| Manufacturer's Grade | 235 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3752 |
| Thickness (mm) | 3.97 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Shape | Trigon |
| Length (mm) | 6.52 |
| Length (Decimal Inch) | 0.2567 |
| Hole Diameter (mm) | 3.70 |
| Hole Diameter (Decimal Inch) | 0.1457 |
| Relief Angle | 7 |
| Coating | TiCN/TiN |
| Coating Process | CVD |
| Cutting Direction | Right Hand |
| Chipbreaker | 56 |
