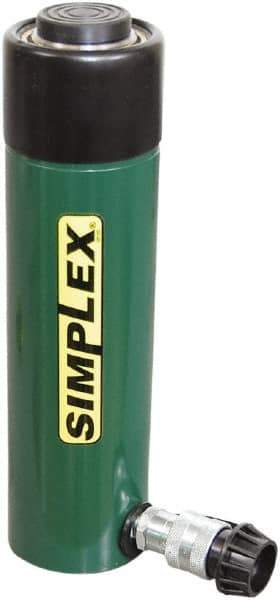

TK Simplex - 8-1/4" Stroke, 30 Ton Portable Hydraulic Single Acting Cylinder - 6.49 Sq In Effective Area, 53.6 Cu In Oil Capacity, 15.25 to 23.5" High, 2.25" Cyl Bore Diam, 2-7/8" Plunger Diam, 10,000 Max psi
Item #: 49268287
Brand: TK Simplex
Model #: R308
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Single Acting |
| Load Capacity (Ton) | 30 |
| Piston Stroke (Decimal Inch) | 8.25 |
| Cylinder Bore Diameter (Decimal Inch) | 2.88 |
| Lowered Height | 15.25 |
| Oil Capacity | 53.60 |
| Effective Area | 6.49 |
| Maximum Height (Decimal Inch) | 23.50 |
| Outside Diameter (Inch) | 4 |
| Plunger Diameter | 2.25 |
| Base To Inlet Port (Inch) | 2-1/4 |
| Plunger Internal Thread Size | 1-1/2 - 16 |
| Plunger Internal Thread Length | 1.00 |
| Collar Thread | 3-5/16 - 12 |
| Collar Thread Length (Inch) | 1.93 |
| Maximum Pressure (psi) | 10000 |
