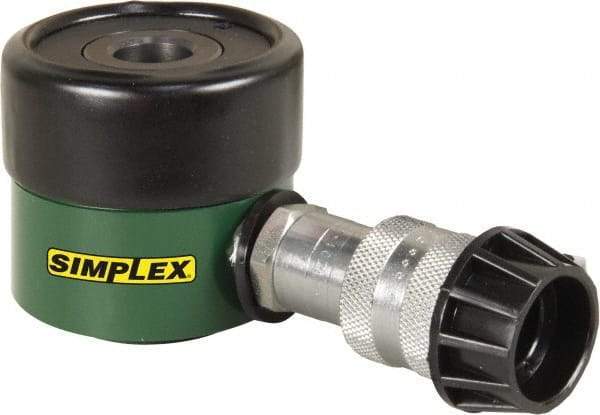

TK Simplex - 5/16" Stroke, 12 Ton Portable Hydraulic Hollow Hole Cylinder - 2.76 Sq In Effective Area, 0.86 Cu In Oil Capacity, 2.2 to 2.5" High, 1-3/8" Plunger Diam, 10,000 Max psi
Item #: 49268196
Brand: TK Simplex
Model #: RC120A
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Hollow Hole |
| Load Capacity (Ton) | 12 |
| Piston Stroke (Decimal Inch) | 0.31 |
| Lowered Height | 2.20 |
| Oil Capacity | 0.86 |
| Effective Area | 2.76 |
| Maximum Height (Decimal Inch) | 2.50 |
| Outside Diameter (Inch) | 2-3/4 |
| Plunger Diameter | 1.38 |
| Base To Inlet Port (Inch) | 3/8 |
| Collar Thread | 2-3/4 - 16 |
| Collar Thread Length (Inch) | 1.19 |
| Y Center Hole Diameter | 0.77 |
| Base Mounting Holes Bolt Circle (Inch) | 2 |
| Two Base Mounting Holes Thread Size | 5/16 - 18 |
| Base Mounting Hole Thread Depth (Inch) | 0.25 |
| Maximum Pressure (psi) | 10000 |
