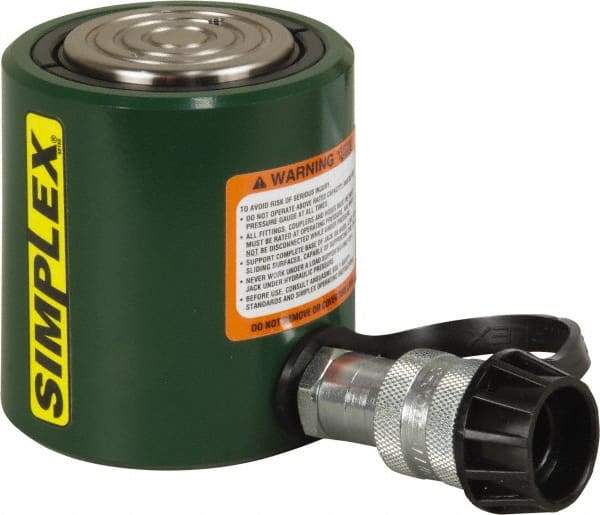

TK Simplex - 2-7/16" Stroke, 30 Ton Portable Hydraulic Low Profile Cylinder - 6.49 Sq In Effective Area, 15.8 Cu In Oil Capacity, 4.62 to 7.06" High, 2-5/8" Plunger Diam, 10,000 Max psi
Item #: 49268089
Brand: TK Simplex
Model #: RLS302
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Low Profile |
| Load Capacity (Ton) | 30 |
| Piston Stroke (Decimal Inch) | 2.44 |
| Lowered Height | 4.62 |
| Oil Capacity | 15.80 |
| Effective Area | 6.49 |
| Maximum Height (Decimal Inch) | 7.06 |
| Outside Diameter (Inch) | 4 |
| Plunger Diameter | 2.62 |
| Base To Inlet Port (Inch) | 3/4 |
| Maximum Pressure (psi) | 10000 |
