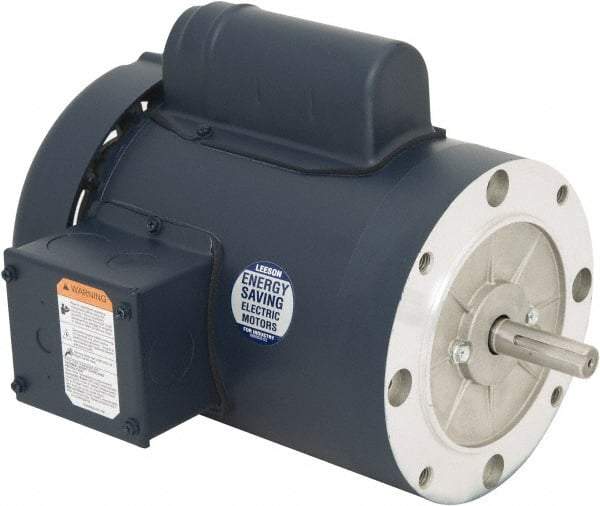

Leeson - 1-1/2 Max hp, 3,600 Max RPM, Capacitor Start Electric AC DC Motor - 115/230 V Input, Single Phase, 56C Frame, 5/8" Shaft Diam, C-Face Mount, TEFC Enclosure
Item #: 49140650
Brand: Leeson
Model #: 110419.00
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Capacitor Start |
| Type of Enclosure | TEFC |
| Maximum HorsePower | 1-1/2 |
| Minimum Horsepower | 1-1/2 |
| Name Plate RPMs | 3450 |
| Phase | Single |
| Input Voltage | 115/230 |
| Frame Size | 56C |
| Full Load Amperage | 8.5 |
| Mount Type | C-Face |
| Bearing Type | Double Shielded Ball |
| Shaft Diameter (Decimal Inch) | 0.6250 |
| Service Factor Rating | 1.00 |
| Frame Material | Steel |
| Insulation Class | B |
| Applications | General Purpose |
| Maximum RPM | 3600 |
| PSC Code | 6105 |
