Leeson - 1-1/2 Max hp, 1,800 Max RPM, Premium Efficient Electric AC DC Motor - 230/460 V Input, Three Phase, 56C Frame, 5/8" Shaft Diam, C-Face Mount, TEFC Enclosure - USA Tool & Supply

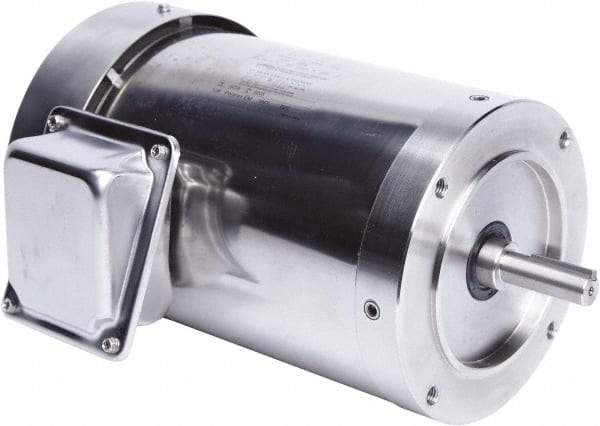

Leeson - 1-1/2 Max hp, 1,800 Max RPM, Premium Efficient Electric AC DC Motor - 230/460 V Input, Three Phase, 56C Frame, 5/8" Shaft Diam, C-Face Mount, TEFC Enclosure


Item #: 49140536
Brand: Leeson
Model #: 191567.00
Exact Tooling IR#: 04

Product Specifications
Motor Type Premium Efficient
Type of Enclosure TEFC
Maximum HorsePower 1-1/2
Minimum Horsepower 1-1/2
Name Plate RPMs 1750
Phase Three
Input Voltage 230/460
Frame Size 56C
Full Load Amperage 4.8
Mount Type C-Face
Bearing Type Double Shielded Ball
Shaft Diameter (Decimal Inch) 0.6250
Service Factor Rating 1.15
Frame Material Stainless Steel
Insulation Class F
Applications Washdown
Maximum RPM 1800
PSC Code 6105
$2,622.00
