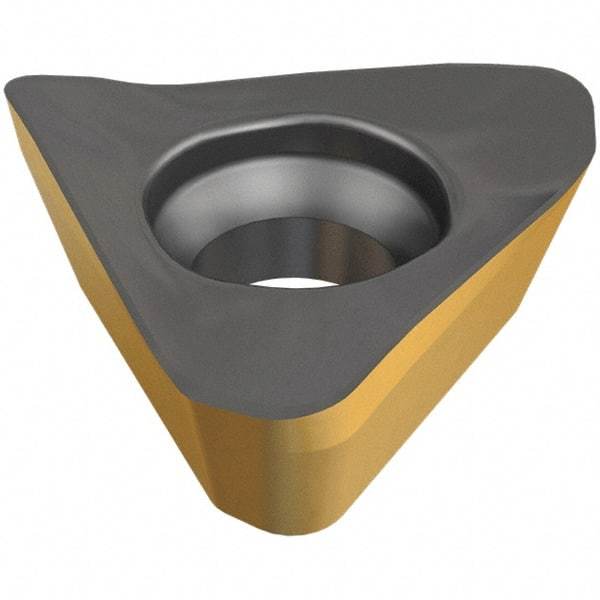

Iscar - HM390 TPKT100316 PDR Grade IC830 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 3.85mm Thick, 7.5mm Inscribed Circle, 1.6mm Corner Radius
Item #: 49062755
Brand: Iscar
Model #: 5667769
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HM390 TPKT |
| Insert Size | 100316 |
| Material | Carbide |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/AlTiN/TiN |
| Length (mm) | 10.90 |
| Length (Decimal Inch) | 0.4290 |
| Inscribed Circle (mm) | 7.50 |
| Inscribed Circle (Decimal Inch) | 0.2950 |
| Thickness (mm) | 3.85 |
| Thickness (Decimal Inch) | 0.1520 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 1.60 |
| Coating Process | PVD |
| Shape | Triangle |
| Chipbreaker | PDR |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Cutting Edge Style | Helical |
| Manufacturers Catalog Number | HM390 TPKT 100316PDR |
| ISO Number | HM390 TPKT 100316PDR |
| ANSI Number | HM390 TPKT 100316PDR |
