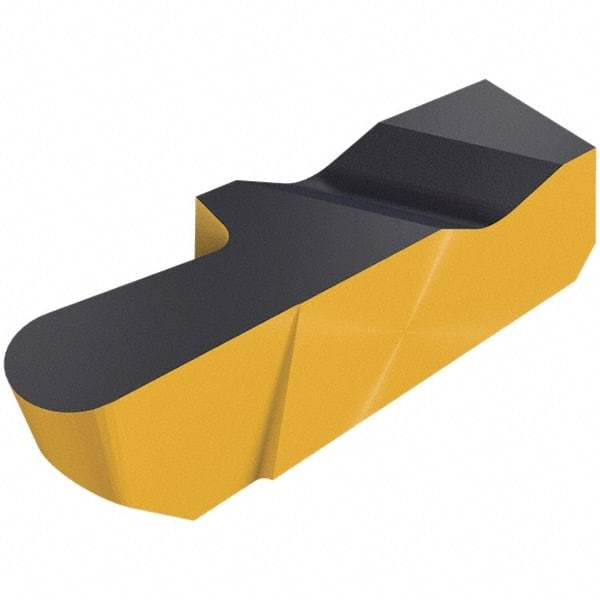

Iscar - 3062INRD Grade IC807, 4.95mm Cutting Width Carbide Grooving Insert - 6.35mm Max Depth of Cut, Right Hand, TiAlN/TiN Finish
Item #: 48993760
Brand: Iscar
Model #: 6411990
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | INRD |
| Insert Size | 3062 |
| Material | Carbide |
| Cutting Width (mm) | 4.95 |
| Cutting Width (Decimal Inch) | 0.1250 |
| Maximum Depth of Cut (mm) | 6.35 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC807 |
| Coating | TiAlN/TiN |
| Insert Hand | Right Hand |
| Multi-Use Application | Grooving; Parting; Turning |
| Coating Process | PVD |
| Overall Length (mm) | 24.99 |
| Overall Length (Decimal Inch) | 0.9840 |
| Series | Notch-Grip |
| ISO Number | INRD3062R IC807 |
| Manufacturers Catalog Number | 6411990 |
| Overall Width (mm) | 4.95 |
| Overall Width (Decimal Inch) | 0.1950 |
| Insert Thickness (Decimal Inch) | 0.3440 |
| Insert Thickness (mm) | 8.7400 |
