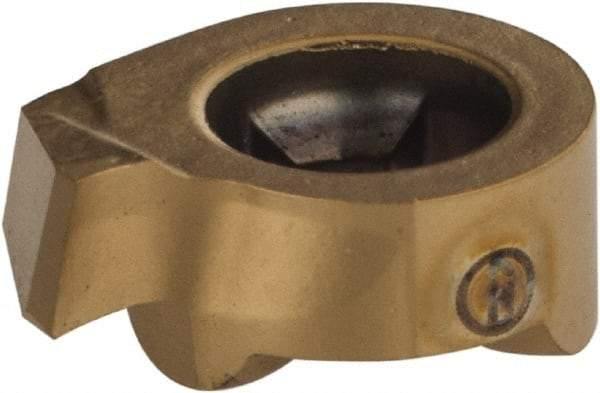

Iscar - 11-B18-0.15GIQR Grade IC528, 0.0984" Cutting Width Carbide Grooving Insert - 0.079" Max Depth of Cut, Right Hand, 0.0059" Corner Radius, TiCN/TiN Finish
Item #: 48777320
Brand: Iscar
Model #: 6402682
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIQR |
| Insert Size | 11-B18-0.15 |
| Material | Carbide |
| Cutting Width (Decimal Inch) | 0.0984 |
| Maximum Depth of Cut (Decimal Inch) | 0.0790 |
| Material Grade | C5/C6 |
| Manufacturer's Grade | IC528 |
| Coating | TiCN/TiN |
| Insert Hand | Right Hand |
| Relief Angle | 18 |
| Corner Radius (Decimal Inch) | 0.0059 |
| Coating Process | PVD |
| Overall Length (mm) | 10.70 |
| Overall Length (Decimal Inch) | 0.4213 |
| Manufacturers Catalog Number | GIQR 11-B18-0.15 |
| Overall Width (mm) | 2.50 |
| Overall Width (Decimal Inch) | 0.0984 |
