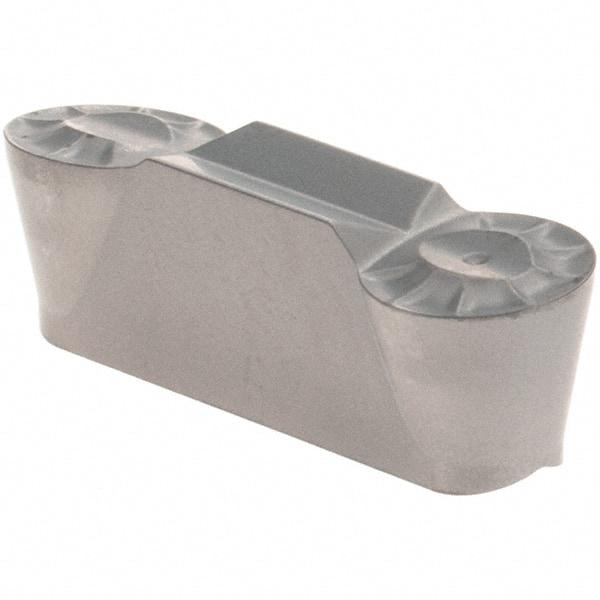

Iscar - 6030GRIP Y Grade IC08, 6mm Cutting Width Carbide Grooving Insert - 3mm Max Depth of Cut, Neutral, Uncoated
Item #: 48776751
Brand: Iscar
Model #: 6200154
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GRIP |
| Insert Size | 6030 |
| Material | Carbide |
| Cutting Width (mm) | 6.00 |
| Cutting Width (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Material Grade | C2 |
| Manufacturer's Grade | IC08 |
| Coating | Uncoated |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 7 |
| Chipbreaker | Y |
| Multi-Use Tool | No |
| Overall Length (mm) | 19.00 |
| Overall Length (Decimal Inch) | 0.7480 |
