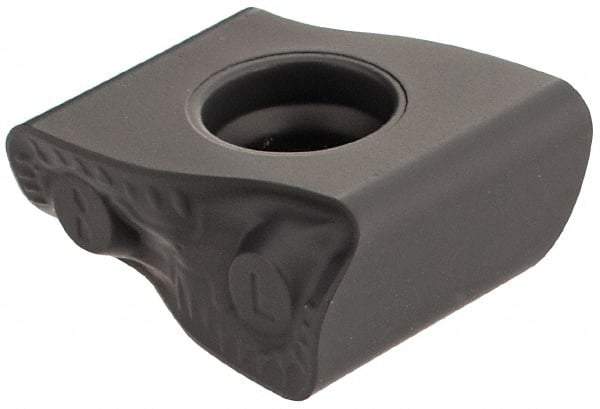

Iscar - LNMX150616 HT Grade IC428 Carbide Turning Insert - Al2O3 Finish, 90° Rectangle, 13.4mm Thick, 1/16" Corner Radius
Item #: 48776678
Brand: Iscar
Model #: 5506281
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNMX |
| Insert Size | 150616 |
| Material | Carbide |
| Length (mm) | 15.00 |
| Length (Decimal Inch) | 0.5906 |
| Thickness (Decimal Inch) | 0.5276 |
| Thickness (mm) | 13.40 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Manufacturer's Grade | IC428 |
| Coating | Al2O3 |
| Material Grade | C3/C4 |
| Chip Breaker | HT |
| Rake | Positive |
| Relief Angle | 0 |
| Coating Process | CVD |
| Manufacturers Catalog Number | LNMX150616L |
| Primary Workpiece Material | K |
| Secondary Workpiece Material | P; H |
| Included Angle | 90 |
| Insert Hand | Left Hand |
| Insert Holding Method | Screw |
| Shape | Rectangle |
