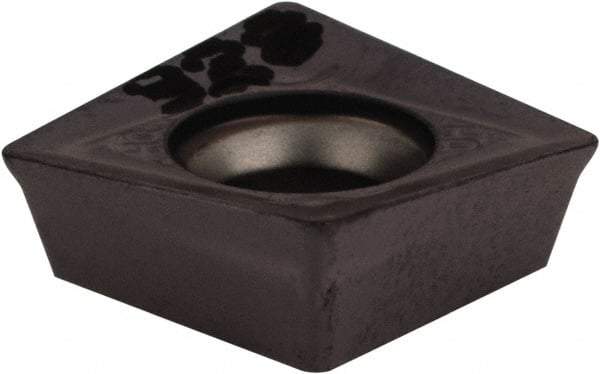

Iscar - XPMT100408 HQ Grade IC928 Carbide Milling Insert - TiAlN Finish, 0.1622" Thick, 0.4016" Inscribed Circle, 0.6mm Corner Radius
Item #: 48683635
Brand: Iscar
Model #: 5602370
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XPMT |
| Insert Size | 100408 |
| Material | Carbide |
| Material Grade | C1/C2/C5/C6 |
| Manufacturer's Grade | IC928 |
| Coating | TiAlN |
| Inscribed Circle (Decimal Inch) | 0.4016 |
| Thickness (Decimal Inch) | 0.1622 |
| Corner Radius (Decimal Inch) | 0.0236 |
| Corner Radius (mm) | 0.60 |
| Relief Angle | 11.000 |
| Coating Process | PVD |
| Shape | Square |
| Chipbreaker | HQ |
| ISO Number | XPMT 100408-HQ |
