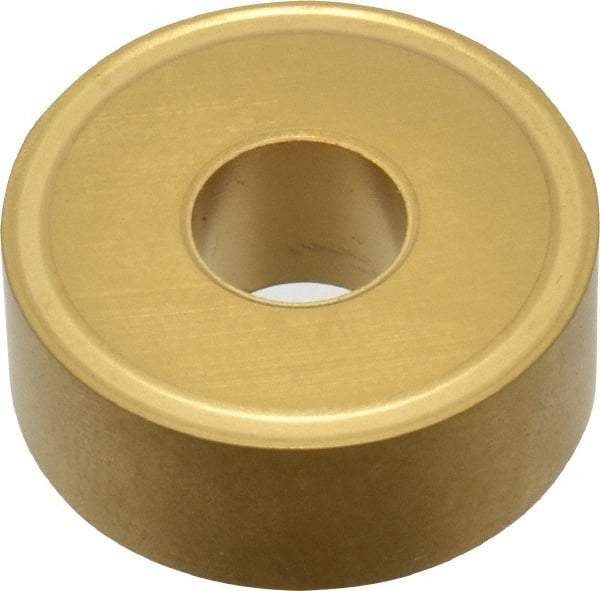

Kennametal - RNMG86 Grade KC850 Carbide Turning Insert - TiC/TiCN/TiN Finish, Round, 1" Inscr Circle, 3/8" Thick
Item #: 48473854
Brand: Kennametal
Model #: 1160162
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RNMG |
| Insert Size | 86 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Inscribed Circle (Inch) | 1 |
| Thickness (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.3750 |
| Manufacturer's Grade | KC850 |
| Coating | TiC/TiCN/TiN |
| Material Grade | C5/C6 |
| Hole Diameter (mm) | 9.12 |
| Hole Diameter (Decimal Inch) | 0.3591 |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | CVD |
| Series | KENLOC |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Pin & Clamp |
| Shape | Round |
