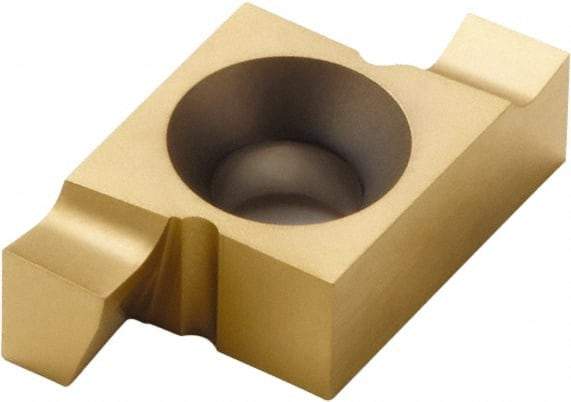

Seco - 144014EAR FA Grade CP30, 4mm Cutting Width Carbide Grooving Insert - 4mm Max Depth of Cut, Right Hand
Item #: 48464515
Brand: Seco
Model #: 26094
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 14EAR |
| Insert Size | 1440 |
| Material | Carbide |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Manufacturer's Grade | CP30 |
| Insert Hand | Right Hand |
| Insert Seat Size | 14 |
| Chipbreaker | FA |
| Multi-Use Tool | No |
| Overall Length (mm) | 14.00 |
| Overall Length (Decimal Inch) | 0.5512 |
| Series | Snap Tap |
| Overall Width (mm) | 9.53 |
| Overall Width (Decimal Inch) | 0.3752 |
