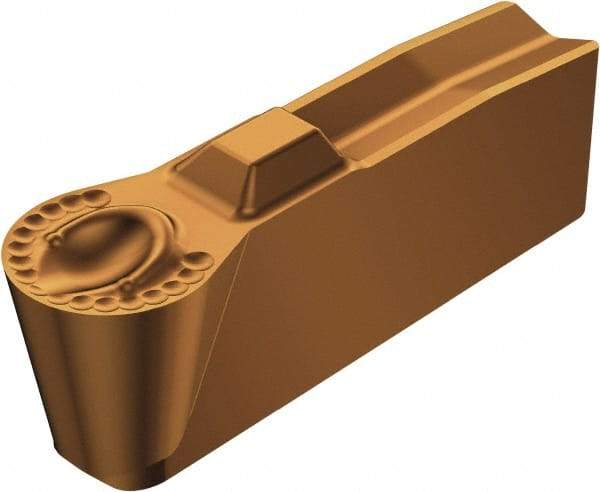

Sandvik Coromant - 30N151.3 7P 4mm Cutting Width Carbide Grooving Insert - 1.7mm Max Depth of Cut, Neutral, 2mm Corner Radius, TiAlN Finish
Item #: 48395933
Brand: Sandvik Coromant
Model #: 5736992
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N151.3 |
| Insert Size | 30 |
| Material | Carbide |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 1.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.0669 |
| Coating | TiAlN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 5.28 |
| Cutting Height (Decimal Inch) | 0.2081 |
| Insert Seat Size | 30 |
| Chipbreaker | 7P |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Minimum Corner Radius (Decimal Inch) | 0.0787 |
| Corner Radius (mm) | 2.00 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.4250 |
| Series | T-Max Q-Cut |
| Rake | Positive |
| ISO Number | N151.3-400-30-7P 1125 |
| Manufacturers Catalog Number | N151.3-400-30-7P 1125 |
| Overall Width (Decimal Inch) | 0.1580 |
| Insert Thickness (Decimal Inch) | 0.2081 |
