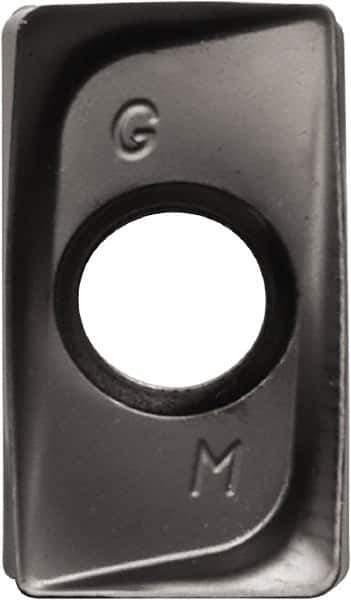

Kyocera - LOMU100404 GM Grade PR1535 Carbide Milling Insert - Megacoat Nano Finish, 4mm Thick, 0.4mm Corner Radius
Item #: 48320733
Brand: Kyocera
Model #: 8838160
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LOMU |
| Insert Size | 100404 |
| Material | Carbide |
| Manufacturer's Grade | PR1535 |
| Coating | Megacoat Nano |
| Width (mm) | 6.60 |
| Width (Decimal Inch) | 0.2598 |
| Length (mm) | 10.90 |
| Length (Decimal Inch) | 0.4291 |
| Thickness (mm) | 4.00 |
| Thickness (Decimal Inch) | 0.1575 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Hole Diameter (mm) | 3.40 |
| Hole Diameter (Decimal Inch) | 0.1339 |
| Coating Process | PVD |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Chipbreaker | GM |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | LOMU100404ERGM |
