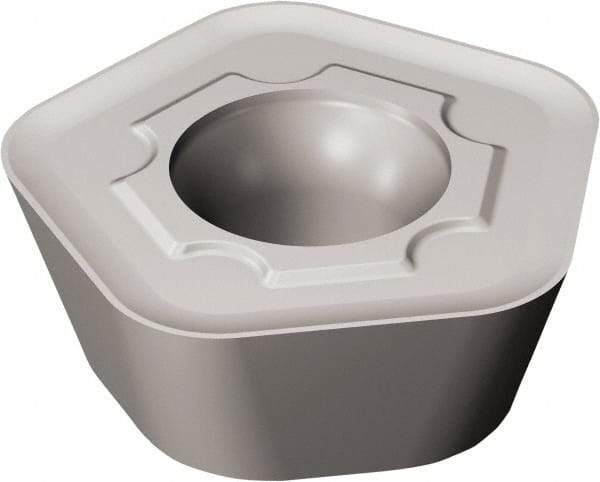

Sandvik Coromant - 419N140530 SM Grade S30T Carbide Milling Insert - TiAlN2 Finish, 5.47mm Thick, 13.5mm Inscribed Circle, 3mm Corner Radius
Item #: 48278667
Brand: Sandvik Coromant
Model #: 6289943
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 419N |
| Insert Size | 140530 |
| Material | Carbide |
| Manufacturer's Grade | S30T |
| Coating | TiAlN2 |
| Length (mm) | 9.00 |
| Inscribed Circle (mm) | 13.50 |
| Inscribed Circle (Decimal Inch) | 0.5315 |
| Thickness (mm) | 5.47 |
| Thickness (Decimal Inch) | 0.2154 |
| Corner Radius (Decimal Inch) | 0.1181 |
| Corner Radius (mm) | 3.00 |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Rake Angle | 5 |
| Rake | Positive |
| Coating Process | PVD |
| Included Angle | 108 |
| Shape | Pentagon |
| Insert Hand | Neutral |
| Chipbreaker | SM |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | 419N-140530E-SM S30T |
