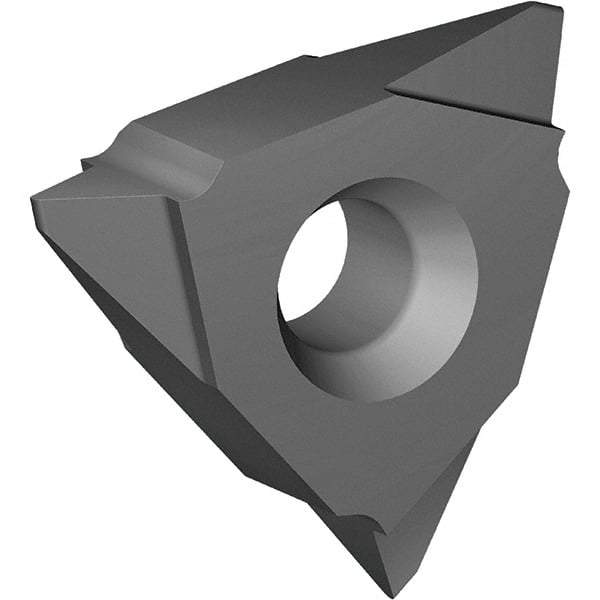

Vargus - 2VER External Right Hand 48-16 Partial 60 Laydown Threading Insert - Grade VTX, TiAIN Coated Carbide
Item #: 48238083
Brand: Vargus
Model #: 024-00025
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 2VER |
| Insert Hand | Right Hand |
| Thread Type | External |
| Thread Standard | Partial 60 |
| Material Grade | Micrograin |
| Manufacturer's Grade | VTX |
| Threads Per Inch | 48-16 |
| Pitch (mm) | 0.50-1.50 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Decimal Inch) | 0.1248 |
| Thickness (mm) | 3.17 |
| Included Angle of Threading Tip | 60 |
| Coating | TiAIN |
| Coating Process | PVD |
| Corner Radius (mm) | 0.05 |
| Corner Radius (Decimal Inch) | 0.0020 |
| Series | Slim Throat |
