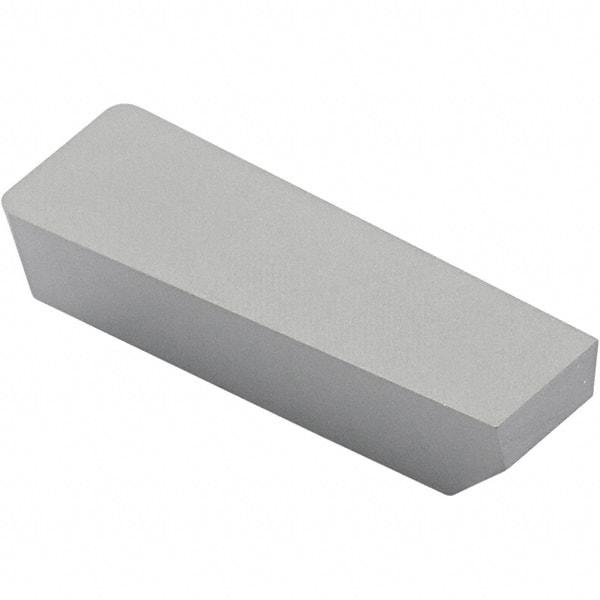

Seco - 250808LPGN Grade CW100, 5/16" Cutting Width Ceramic Grooving Insert - 1/2" Max Depth of Cut, Neutral, 0.787mm Corner Radius, Uncoated
Item #: 47957592
Brand: Seco
Model #: 94705
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | LPGN |
| Insert Size | 250808 |
| Material | Ceramic |
| Cutting Width (Decimal Inch) | 0.3120 |
| Maximum Depth of Cut (Inch) | 1/2 |
| Manufacturer's Grade | CW100 |
| Coating | Uncoated |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 8.31 |
| Lead Angle | 90 |
| Insert Seat Size | 8 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.787 |
