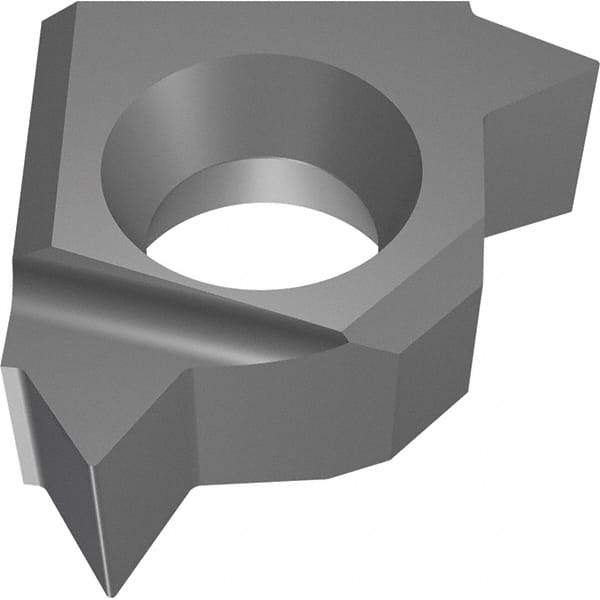

Vargus - 5LI Internal Left Hand 26-14 Partial Profile 55° Laydown Threading Insert - Grade VBX, TiCN Coated Carbide, 5mm Inscribed Circle
Item #: 47857180
Brand: Vargus
Model #: 50268
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 5LI |
| Insert Hand | Left Hand |
| Thread Type | Internal |
| Thread Standard | Partial Profile 55 |
| Material Grade | Micrograin |
| Manufacturer's Grade | VBX |
| Threads Per Inch | 26-14 |
| Inscribed Circle (Decimal Inch) | 0.1970 |
| Inscribed Circle (mm) | 5.00 |
| Thickness (Decimal Inch) | 1.1970 |
| Included Angle of Threading Tip | 55 |
| Coating | TiCN |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0040 |
| Number of Teeth Per Side | 1 |
| Series | Mini L |
| Insert Size | 5L |
