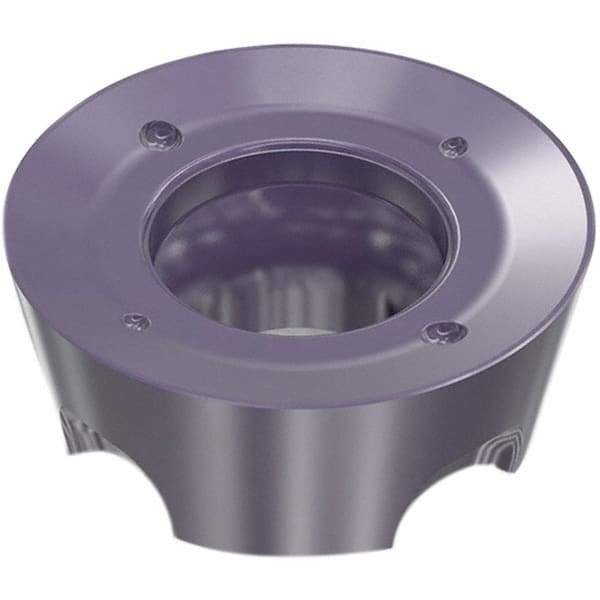

Seco - RPHT1204M0 M13 Grade MP2050 Carbide Milling Insert - TiAlN/TiSiN Finish, 4.76mm Thick, 12mm Inscribed Circle, 6mm Corner Radius
Item #: 47769690
Brand: Seco
Model #: 01790
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RPHT |
| Insert Size | 1204M0 |
| Material | Carbide |
| Material Grade | C2/C3 |
| Manufacturer's Grade | MP2050 |
| Coating | TiAlN/TiSiN |
| Inscribed Circle (mm) | 12.00 |
| Thickness (mm) | 4.76 |
| Corner Radius (mm) | 6.00 |
| Hole Diameter (mm) | 4.50 |
| Relief Angle | 11.000 |
| Coating Process | PVD |
| Insert Hand | Neutral |
| Chipbreaker | M13 |
| Cutting Edge Style | Honed |
| Cutter Series Compatibility | 335.18 |
