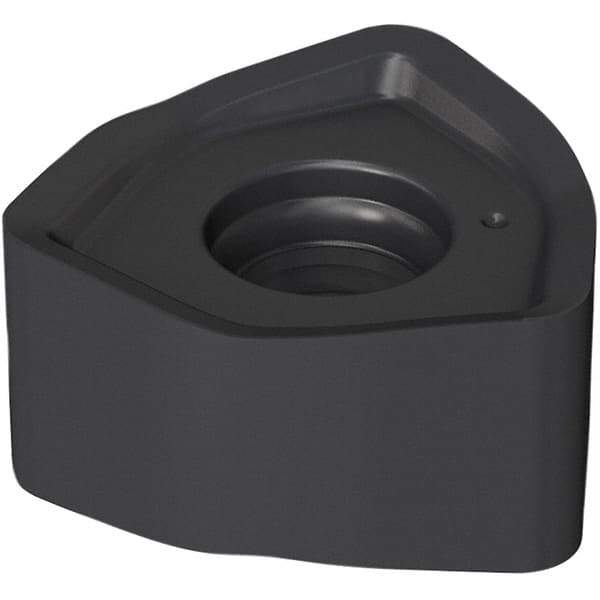

Seco - 218.21230TR ME13 Grade MM4500 Carbide Milling Insert - TiCN/Al2O3 Finish, 5.95mm Thick, 1/2" Inscribed Circle, 1.6mm Corner Radius
Item #: 47769427
Brand: Seco
Model #: 46462
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 218.21 |
| Insert Size | 230TR |
| Material | Carbide |
| Material Grade | C4/C5 |
| Manufacturer's Grade | MM4500 |
| Coating | TiCN/Al2O3 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (mm) | 5.95 |
| Corner Radius (mm) | 1.60 |
| Hole Diameter (mm) | 4.75 |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Insert Hand | Right Hand |
| Chipbreaker | ME13 |
| Cutting Edge Style | Honed |
| Cutter Series Compatibility | R220.21-R230 |
