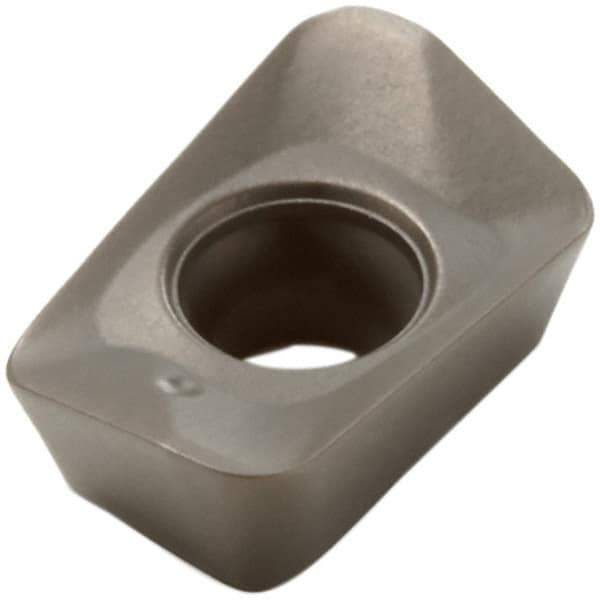

Seco - XOMX060216 M05 Grade MM4500 Carbide Milling Insert - TiCN/Al2O3 Finish, 4.1mm Thick, 1.6mm Corner Radius
Item #: 47769419
Brand: Seco
Model #: 77302
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XOMX |
| Insert Size | 060216 |
| Material | Carbide |
| Material Grade | C4/C5 |
| Manufacturer's Grade | MM4500 |
| Coating | TiCN/Al2O3 |
| Width (mm) | 4.10 |
| Length (mm) | 6.00 |
| Thickness (mm) | 4.10 |
| Corner Radius (mm) | 1.60 |
| Hole Diameter (mm) | 1.90 |
| Relief Angle | 15.000 |
| Coating Process | CVD |
| Included Angle | 80 |
| Insert Hand | Right Hand |
| Chipbreaker | M05 |
| Cutting Edge Style | Honed |
| Cutter Series Compatibility | R217/220.69-06 |
