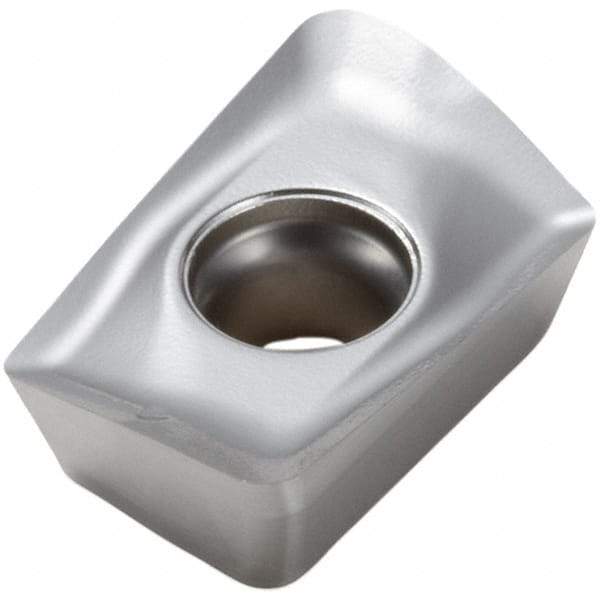

Seco - XOMX060216 M05 Grade MS2050 Carbide Milling Insert - TiAlN/NbN Finish, 4.1mm Thick, 1.6mm Corner Radius
Item #: 47769070
Brand: Seco
Model #: 52993
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XOMX |
| Insert Size | 060216 |
| Material | Carbide |
| Material Grade | C2/C3 |
| Manufacturer's Grade | MS2050 |
| Coating | TiAlN/NbN |
| Width (mm) | 4.10 |
| Length (mm) | 6.00 |
| Thickness (mm) | 4.10 |
| Corner Radius (mm) | 1.60 |
| Hole Diameter (mm) | 1.90 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Insert Hand | Right Hand |
| Chipbreaker | M05 |
| Cutting Edge Style | Honed |
| Cutter Series Compatibility | R217/220.69-06 |
