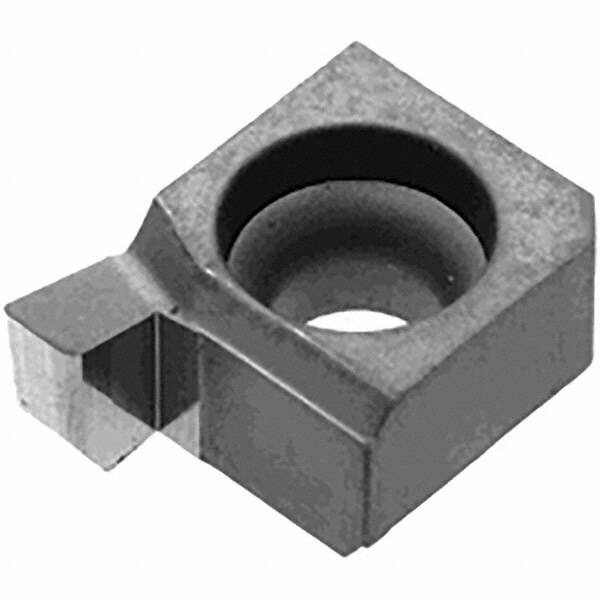

Tungaloy - 8GR300 UX30 Cemented Carbide Grooving Insert
Item #: 47668801
Brand: Tungaloy
Model #: 6800838
Product Specifications
| Insert Style | 8GR |
| Insert Size | 300 |
| Material | Cemented Carbide |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1180 |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0790 |
| Manufacturer's Grade | UX30 |
| Coating | Uncoated |
| Insert Hand | Right Hand |
| Cutting Height (mm) | 2.00 |
| Cutting Height (Decimal Inch) | 0.0790 |
| Multi-Use Application | Grooving; Internal Grooving; Parting |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Overall Length (mm) | 10.16 |
| Overall Length (Decimal Inch) | 0.4000 |
| Series | My-T |
| ISO Number | 8GR300 |
| Manufacturers Catalog Number | 8GR300 |
| Insert Thickness (Decimal Inch) | 0.1520 |
| Insert Thickness (mm) | 3.8700 |
