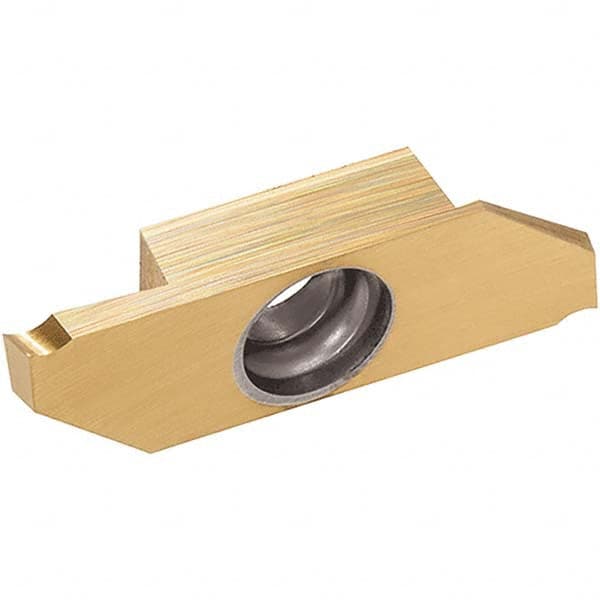

Tungaloy - JXGR8070FA-005 J740 Carbide Grooving Insert
Item #: 47606413
Brand: Tungaloy
Model #: 6821683
Product Specifications
| Insert Style | JXG |
| Insert Size | 8070 |
| Material | Carbide |
| Cutting Width (mm) | 0.70 |
| Cutting Width (Decimal Inch) | 0.0280 |
| Maximum Depth of Cut (mm) | 4.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1770 |
| Material Grade | Ultra Fine Grain |
| Manufacturer's Grade | J740 |
| Coating | TiN |
| Insert Hand | Right Hand |
| Cutting Height (mm) | 4.50 |
| Cutting Height (Decimal Inch) | 0.1770 |
| Multi-Use Application | Grooving; Parting |
| Corner Radius (mm) | 0.05 |
| Corner Radius (Decimal Inch) | 0.0020 |
| Coating Process | PVD |
| Overall Length (mm) | 25.00 |
| Series | J |
| Rake Angle | 15 |
| ISO Number | JXGR8070FA-005 |
| Manufacturers Catalog Number | JXGR8070FA-005 |
| Insert Thickness (Decimal Inch) | 0.1560 |
| Insert Thickness (mm) | 3.9700 |
