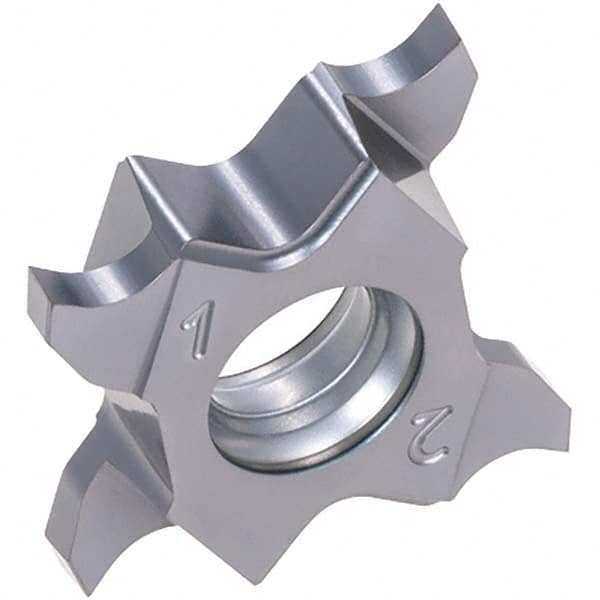

Tungaloy - TCP18L050F-005 SH725 Carbide Grooving Insert
Item #: 47594668
Brand: Tungaloy
Model #: 6734689
Product Specifications
| Insert Style | TCP |
| Insert Size | 18L050 |
| Material | Carbide |
| Cutting Width (mm) | 0.50 |
| Cutting Width (Decimal Inch) | 0.0200 |
| Maximum Depth of Cut (mm) | 1.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.0470 |
| Manufacturer's Grade | SH725 |
| Coating | TiAlN |
| Insert Hand | Left Hand |
| Cutting Height (mm) | 1.20 |
| Cutting Height (Decimal Inch) | 0.0470 |
| Multi-Use Application | Grooving; Parting; Threading |
| Corner Radius (mm) | 0.05 |
| Corner Radius (Decimal Inch) | 0.0020 |
| Coating Process | PVD |
| Series | TetraMcut |
| Rake Angle | 20 |
| ISO Number | TCP18L050F-005 |
| Manufacturers Catalog Number | TCP18L050F-005 |
| Insert Thickness (Decimal Inch) | 0.1570 |
| Insert Thickness (mm) | 4 |
