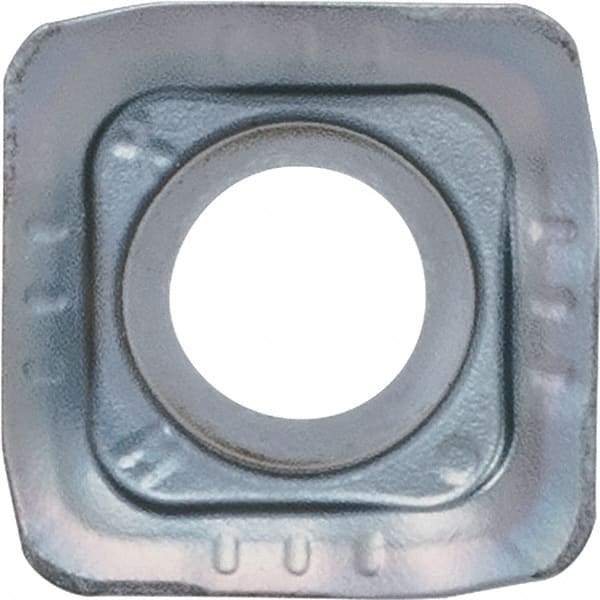

Kyocera - SCMT060210 XM-I Grade PR1535 Carbide Indexable Drill Insert - Megacoat Nano Finish, Square, 6.4mm Inscribed Circle
Item #: 47590294
Brand: Kyocera
Model #: 8858448
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
MEGACOAT Nano provides good adhesion and wear resistance. It is designed with a TiN coating that offers good visibility of the cutting edge and a high-quality surface finish.
| Product Specifications | |
|---|---|
| Insert Style | SCMT |
| Insert Size | 060210 |
| Material | Carbide |
| Manufacturer's Grade | PR1535 |
| Inscribed Circle (mm) | 6.40 |
| Thickness (mm) | 2.80 |
| Corner Radius (mm) | 1.00 |
| Shape | Square |
| Hole Diameter (mm) | 2.90 |
| Relief Angle | 7 |
| Included Angle | 90 |
| Coating | Megacoat Nano |
| Coating Process | PVD |
| Chipbreaker | XM-I |
