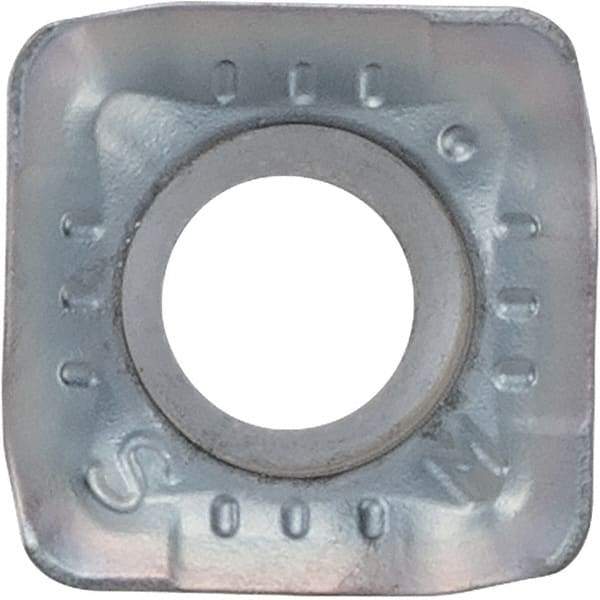

Kyocera - SCMT040209 SM-I Grade PR1535 Carbide Indexable Drill Insert - Megacoat Nano Finish, Square, 4.8mm Inscribed Circle
Item #: 47590153
Brand: Kyocera
Model #: 8858441
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
MEGACOAT Nano provides good adhesion and wear resistance. It is designed with a TiN coating that offers good visibility of the cutting edge and a high-quality surface finish.
| Product Specifications | |
|---|---|
| Insert Style | SCMT |
| Insert Size | 040209 |
| Material | Carbide |
| Manufacturer's Grade | PR1535 |
| Inscribed Circle (mm) | 4.80 |
| Thickness (mm) | 2.20 |
| Corner Radius (mm) | 0.90 |
| Shape | Square |
| Hole Diameter (mm) | 2.40 |
| Relief Angle | 7 |
| Included Angle | 90 |
| Coating | Megacoat Nano |
| Coating Process | PVD |
| Chipbreaker | SM-I |
