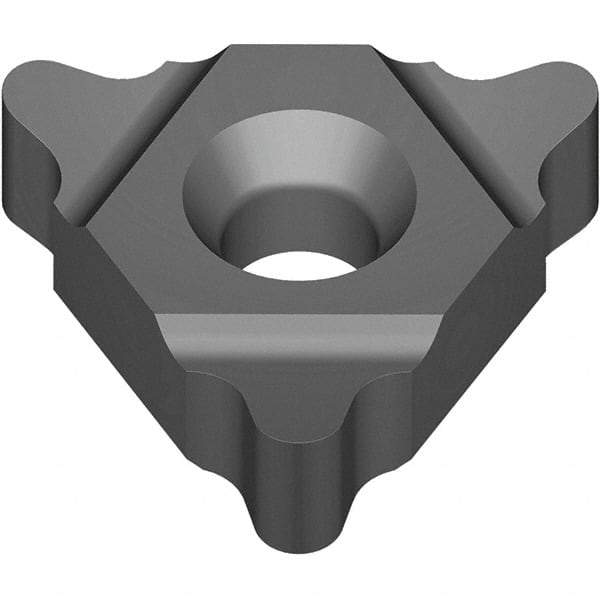

Vargus - 4UIR Internal Right Hand SAGE Laydown Threading Insert - Grade VK2P, Uncoated Coated Carbide
Item #: 47541354
Brand: Vargus
Model #: 022-00201
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 4UIR |
| Insert Hand | Right Hand |
| Thread Type | Internal |
| Thread Standard | SAGE |
| Material Grade | Micrograin |
| Manufacturer's Grade | VK2P |
| Pitch (mm) | 6 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1874 |
| Thickness (mm) | 4.76 |
| Included Angle of Threading Tip | 10 |
| Coating | Uncoated |
| Coating Process | PVD |
| Series | U Style |
