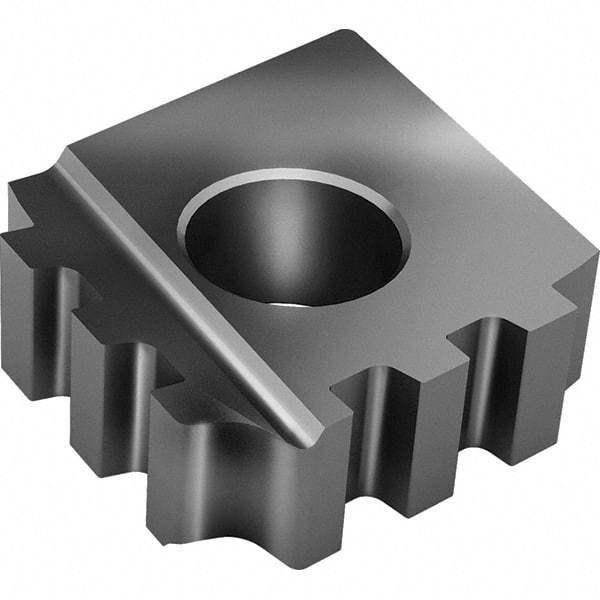

Vargus - CNGA64ER External Right Hand 5 BUT Laydown Threading Insert - Grade VTXP, Uncoated Coated Carbide
Item #: 47529565
Brand: Vargus
Model #: 060-00038
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | CNGA64ER |
| Insert Hand | Right Hand |
| Thread Type | External |
| Thread Standard | BUT |
| Material Grade | Micrograin |
| Manufacturer's Grade | VTXP |
| Threads Per Inch | 5 |
| Inscribed Circle (Inch) | 3/4 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Included Angle of Threading Tip | 3 |
| Coating | Uncoated |
| Coating Process | PVD |
| Number of Teeth Per Side | 3 |
| Series | CNGA |
