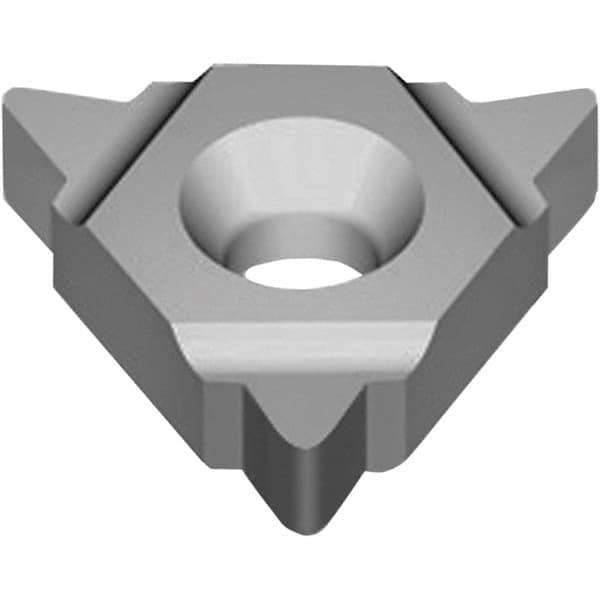

Vargus - 8 TPI, Internal Thread, APIRD Standard, 3UI VTX Grade Thread Mill Insert - Carbide, TiAIN Coating
Item #: 47507512
Brand: Vargus
Model #: 088-00189
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 3UI |
| Thread Type | Internal |
| Thread Standard | APIRD |
| Threads Per Inch | 8 |
| Length (mm) | 16 |
| Length (Decimal Inch) | 0.6300 |
| Material Grade | Micrograin |
| Manufacturer's Grade | VTX |
| Material | Carbide |
| Coating | TiAIN |
| Coating Process | PVD |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
