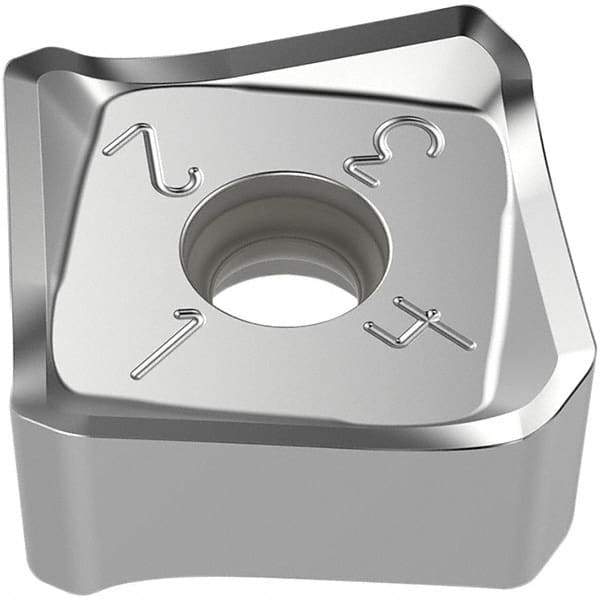

Seco - SNMX2209 M12 Grade MS2050 Carbide Milling Insert - TiAlN/NbN Finish, 8.81mm Thick, 22mm Inscribed Circle, 2mm Corner Radius
Item #: 47485537
Brand: Seco
Model #: 03166963
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMX |
| Insert Size | 2209 |
| Material | Carbide |
| Material Grade | Micrograin |
| Manufacturer's Grade | MS2050 |
| Coating | TiAlN/NbN |
| Width (mm) | 22.00 |
| Width (Decimal Inch) | 0.8700 |
| Length (mm) | 22.00 |
| Length (Decimal Inch) | 0.8700 |
| Inscribed Circle (mm) | 22.00 |
| Inscribed Circle (Decimal Inch) | 0.8700 |
| Thickness (mm) | 8.81 |
| Thickness (Decimal Inch) | 0.3500 |
| Corner Radius (Decimal Inch) | 0.0800 |
| Corner Radius (mm) | 2.00 |
| Rake Angle | 20 |
| Rake | Neutral |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | M12 |
