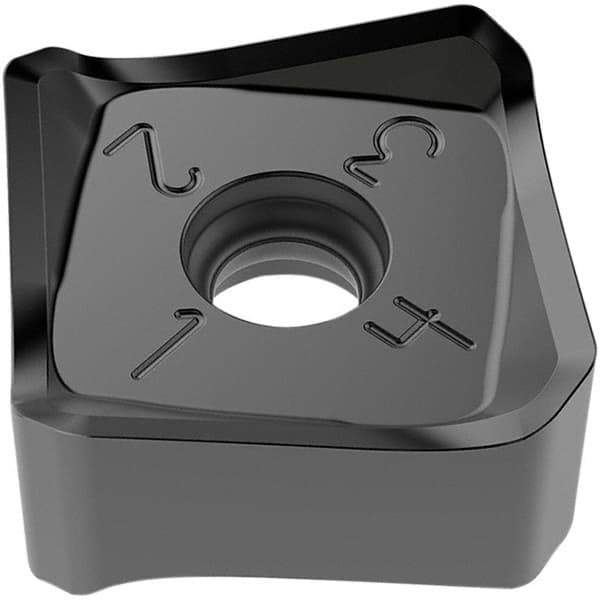

Seco - SNMX2209 M18 Grade MS2500 Carbide Milling Insert - TiCN/Al2O3 Finish, 8.81mm Thick, 22mm Inscribed Circle, 2mm Corner Radius
Item #: 47485156
Brand: Seco
Model #: 03166972
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMX |
| Insert Size | 2209 |
| Material | Carbide |
| Material Grade | C6 |
| Manufacturer's Grade | MS2500 |
| Coating | TiCN/Al2O3 |
| Width (mm) | 22.00 |
| Width (Decimal Inch) | 0.8700 |
| Length (mm) | 22.00 |
| Length (Decimal Inch) | 0.8700 |
| Inscribed Circle (mm) | 22.00 |
| Inscribed Circle (Decimal Inch) | 0.8700 |
| Thickness (mm) | 8.81 |
| Thickness (Decimal Inch) | 0.3500 |
| Corner Radius (Decimal Inch) | 0.0800 |
| Corner Radius (mm) | 2.00 |
| Rake Angle | 25 |
| Rake | Neutral |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | M18 |
