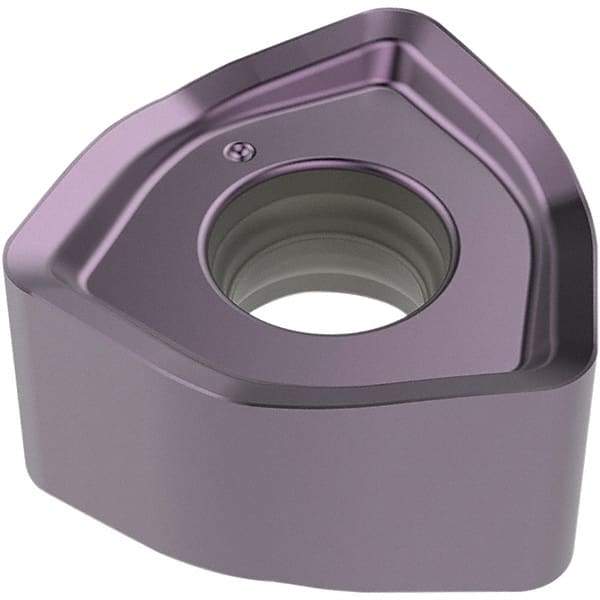

Seco - 218.21230TR-06 ME13 Grade MP2050 Carbide Milling Insert - TiAlN/TiSiN Finish, 5.95mm Thick, 1/2" Inscribed Circle, 1.6mm Corner Radius
Item #: 47485057
Brand: Seco
Model #: 03212922
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 218.21 |
| Insert Size | 230TR-06 |
| Material | Carbide |
| Material Grade | C3/C4 |
| Manufacturer's Grade | MP2050 |
| Coating | TiAlN/TiSiN |
| Width (mm) | 14.32 |
| Width (Decimal Inch) | 0.5638 |
| Length (mm) | 14.32 |
| Length (Decimal Inch) | 0.5638 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (mm) | 5.95 |
| Thickness (Decimal Inch) | 0.2300 |
| Corner Radius (Decimal Inch) | 0.0600 |
| Corner Radius (mm) | 1.60 |
| Rake Angle | 21 |
| Rake | Neutral |
| Coating Process | PVD |
| Shape | Ball Nose Rounded Tip |
| Insert Hand | Neutral |
| Chipbreaker | ME13 |
