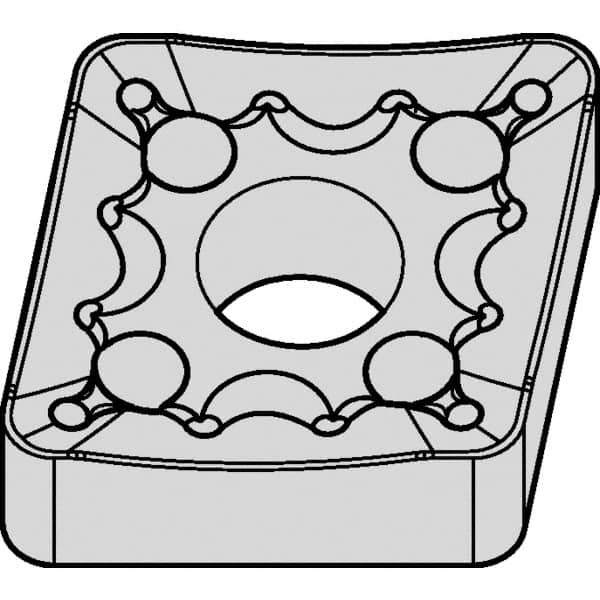

Kennametal - CNMM544 MR Grade KCP25B Carbide Turning Insert - TiOCN Finish, 80° Diamond/Rhombic, 5/8" Inscr Circle, 1/4" Thick, 3/64" Corner Radius
Item #: 47451604
Brand: Kennametal
Model #: 6151530
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMM |
| Insert Size | 544 |
| Material | Carbide |
| Length (Decimal Inch) | 0.6346 |
| Inscribed Circle (Inch) | 5/8 |
| Thickness (Inch) | 1/4 |
| Corner Radius (Inch) | 3/64 |
| Manufacturer's Grade | KCP25B |
| Coating | TiOCN |
| Chip Breaker | MR |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Relief Angle | 0 |
| Coating Process | MTCVD |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | Kenloc |
| Shape | Diamond/Rhombic |
