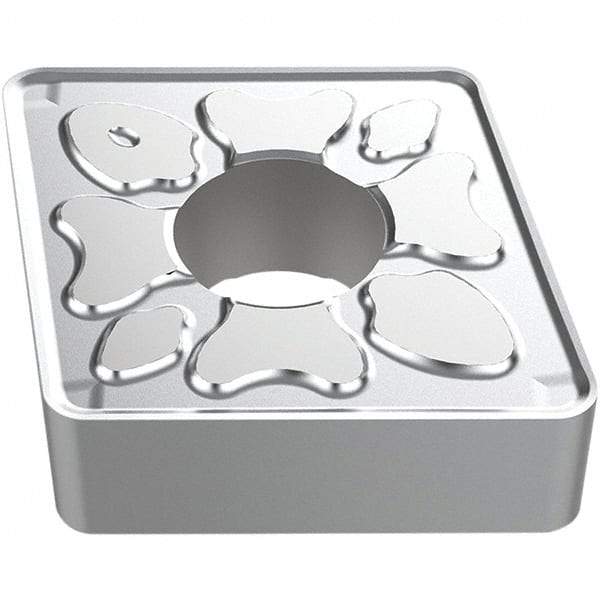

Seco - SNMG434 M6 Grade TP1501 Carbide Turning Insert - Ti(C/N)/Al2O3/TiN Finish, Square, 1/2" Inscr Circle, 4.76mm Thick, 0.06" Corner Radius
Item #: 47429097
Brand: Seco
Model #: 03169654
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMG |
| Insert Size | 434 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Decimal Inch) | 0.1900 |
| Thickness (mm) | 4.76 |
| Corner Radius (Decimal Inch) | 0.0600 |
| Manufacturer's Grade | TP1501 |
| Coating | Ti(C/N)/Al2O3/TiN |
| Chip Breaker | M6 |
| Proprietary Coating Designation | Duratomic |
| Coating Process | CVD |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw & Clamp |
| Cutting Edge Style | Honed |
| FullRadius | Yes |
| Multi Use Application | Turning |
| Shape | Square |
