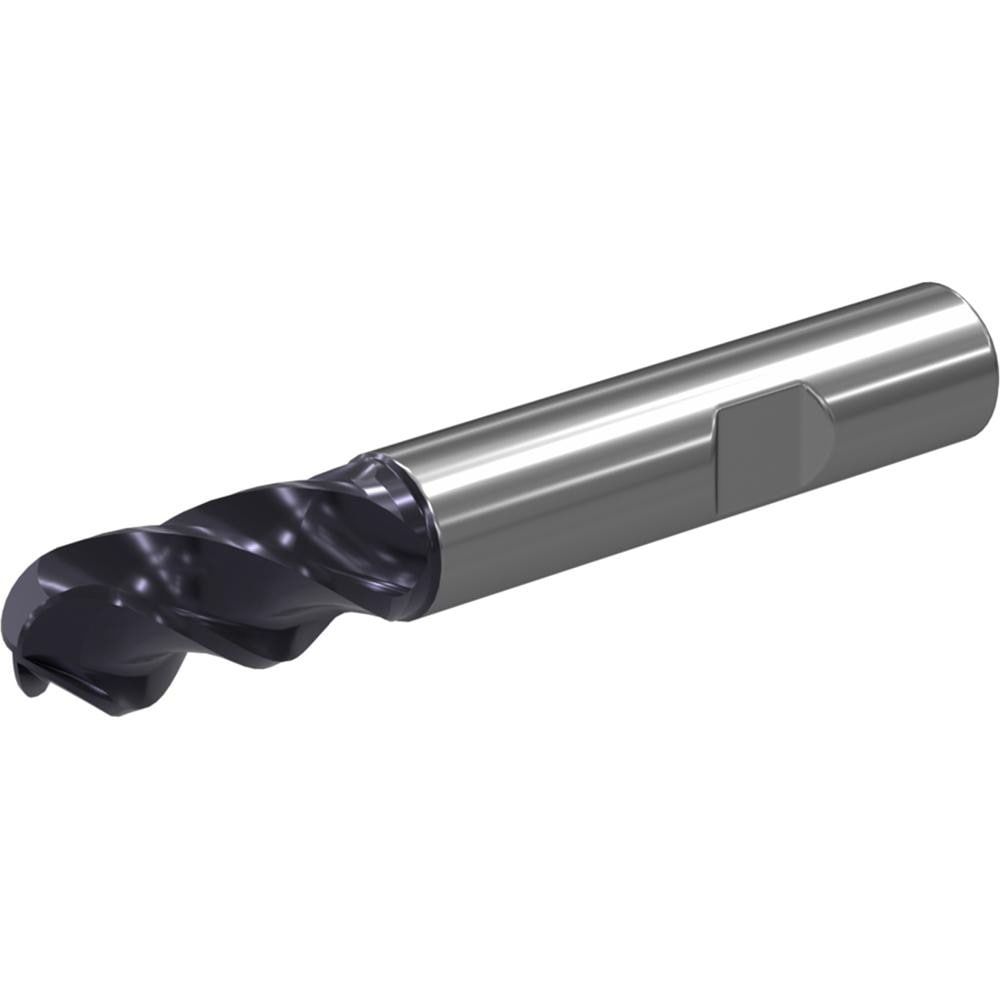

Ball End Mill: 12.00 mm Dia, 26.00 mm LOC, 4 Flute, Solid Carbide
Item #: 33978651
Brand: Widia
Model #: 6945898
Product Specifications
| Mill Diameter (mm) | 12.00 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (mm) | 26.00 |
| Coating/Finish | TiAlN |
| Extended Reach | Yes |
| Variable Helix | Yes |
| Variable Index | Yes |
| Overall Length (mm) | 83.00 |
| Chipbreaker | No |
| Undercutting | No |
| Length Of Cut Range (Decimal Inch) | 1.0000 - 1.5000 |
| Length Type | Extended |
| Helix Style | Variable |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Shank Diameter (mm) | 12.00 |
| Nose Radius (mm) | 6.00 |
| Nose Radius (Decimal Inch) | 6.0000 |
| Neck Length (mm) | 4.00 |
| Reach Length (mm) | 30.00 |
| Maximum Helix Angle | 38 |
| Minimum Helix Angle | 38 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Secondary Workpiece Material | Superalloys & Titanium |
| Secondary Workpiece Material Code | S |
| Material Grade | WU20PE |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | W4BN |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Centercutting | Yes |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Shank Type | Weldon Flat |
| Pitch | Variable |
| Coolant Through | No |
| Manufacturers Catalog Number | W4NBM12006RBW |
| System Of Measurement | Metric |
