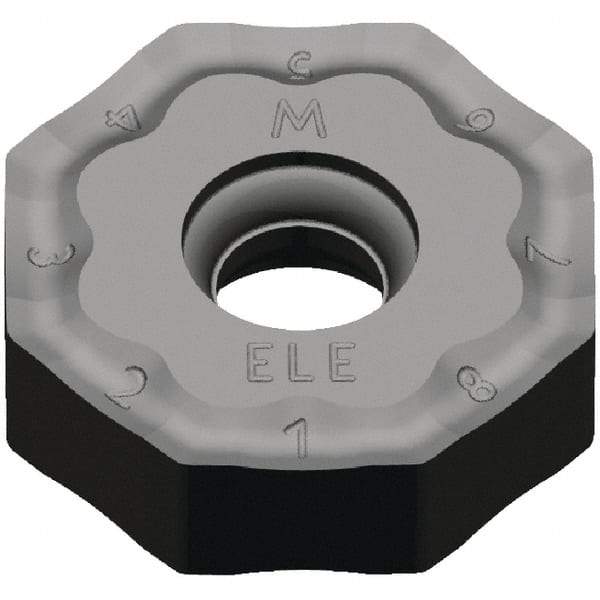

Kennametal - ONGX645 LE Grade KCK15 Carbide Milling Insert - Al2O3 Finish, 5.81mm Thick, 20mm Inscribed Circle, 2mm Corner Radius
Item #: 47388939
Brand: Kennametal
Model #: 6406706
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ONGX |
| Insert Size | 645 |
| Material | Carbide |
| Manufacturer's Grade | KCK15 |
| Coating | Al2O3 |
| Length (mm) | 8.28 |
| Inscribed Circle (mm) | 20.00 |
| Thickness (mm) | 5.81 |
| Corner Radius (mm) | 2.00 |
| Hole Diameter (mm) | 5.70 |
| Rake Angle | 20 |
| Coating Process | MTCVD |
| Included Angle | 135 |
| Shape | Octagon |
| Insert Hand | Neutral |
| Chipbreaker | LE |
