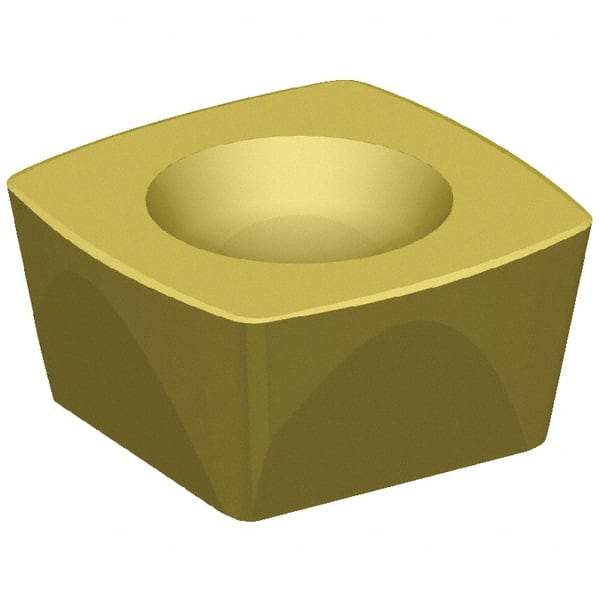

Kennametal - XDPW90412 D Grade KCK15 Carbide Milling Insert - Al2O3 Finish, 4.76mm Thick, 3/8" Inscribed Circle, 1.2mm Corner Radius
Item #: 47388905
Brand: Kennametal
Model #: 6187537
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XDPW |
| Insert Size | 90412 |
| Material | Carbide |
| Manufacturer's Grade | KCK15 |
| Coating | Al2O3 |
| Width (Inch) | 3/8 |
| Length (Inch) | 3/8 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (mm) | 4.76 |
| Corner Radius (mm) | 1.20 |
| Hole Diameter (mm) | 4.00 |
| Relief Angle | 9.000 |
| Coating Process | MTCVD |
| Insert Hand | Right Hand |
| Chipbreaker | D |
