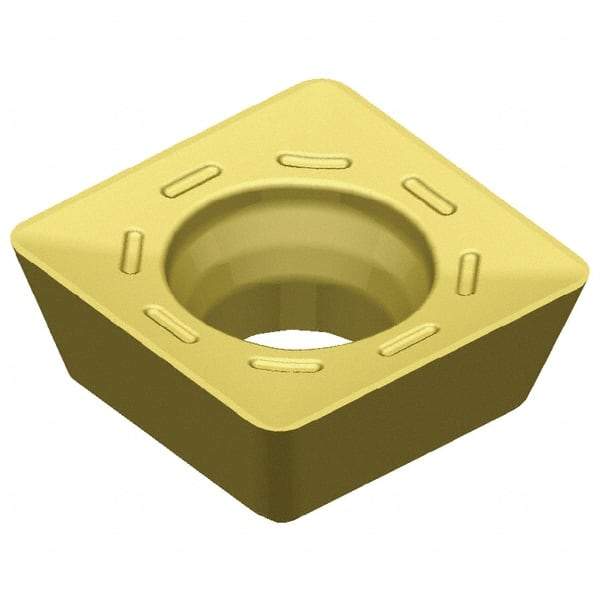

Kennametal - SDHT09T308 422 Grade KCSM40 Carbide Milling Insert - TiN Finish, 3.97mm Thick, 3/8" Inscribed Circle, 0.8mm Corner Radius
Item #: 47388897
Brand: Kennametal
Model #: 6178251
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SDHT |
| Insert Size | 09T308 |
| Material | Carbide |
| Manufacturer's Grade | KCSM40 |
| Coating | TiN |
| Width (Inch) | 3/8 |
| Length (Inch) | 3/8 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (mm) | 3.97 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 4.40 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | 422 |
