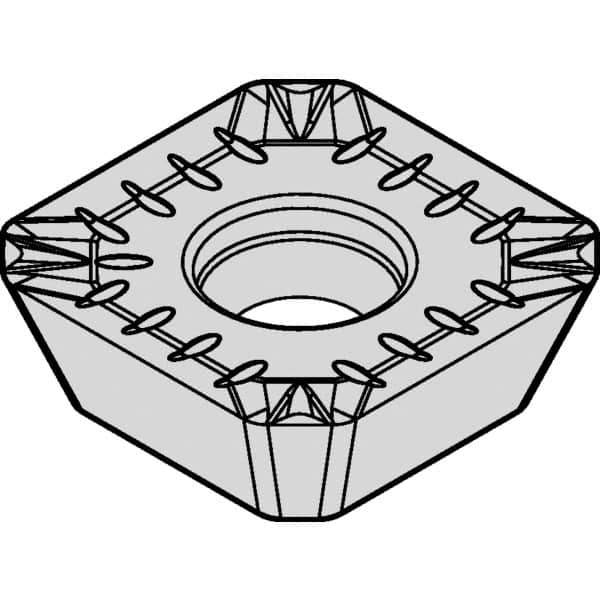

Kennametal - SEKT443 GP2 Grade KCPM40 Carbide Milling Insert - AlCrTiN Finish, 3/16" Thick, 14mm Inscribed Circle, 1mm Corner Radius
Item #: 47388640
Brand: Kennametal
Model #: 6111677
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SEKT |
| Insert Size | 443 |
| Material | Carbide |
| Manufacturer's Grade | KCPM40 |
| Coating | AlCrTiN |
| Width (mm) | 14.00 |
| Length (mm) | 14.00 |
| Inscribed Circle (mm) | 14.00 |
| Thickness (Inch) | 3/16 |
| Corner Radius (mm) | 1.00 |
| Hole Diameter (mm) | 4.40 |
| Relief Angle | 20.000 |
| Rake Angle | 11 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | GP2 |
| ISO Number | SEKT1404AESNGP2 |
| ANSI Number | SEKT443AESN7GP2 |
