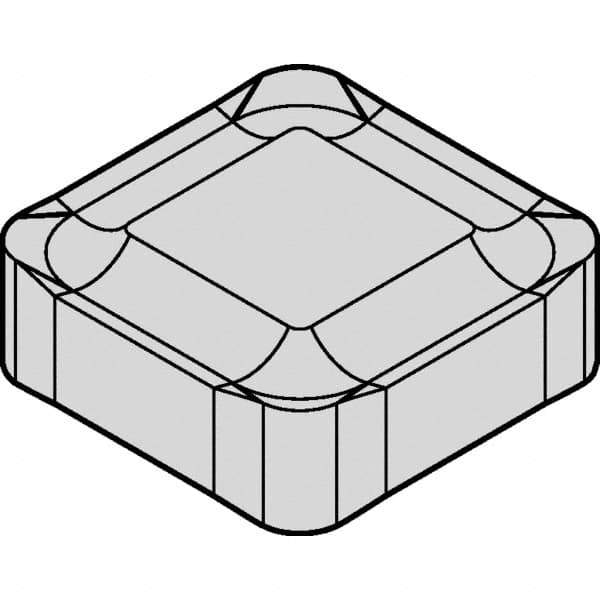

Kennametal - SNXF43 LD Grade KCPK30 Carbide Milling Insert - Al2O3 Finish, 4.42mm Thick, 1/2" Inscribed Circle, 1.6mm Corner Radius
Item #: 47388632
Brand: Kennametal
Model #: 6397378
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNXF |
| Insert Size | 43 |
| Material | Carbide |
| Manufacturer's Grade | KCPK30 |
| Coating | Al2O3 |
| Width (Inch) | 1/2 |
| Length (Inch) | 1/2 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (mm) | 4.42 |
| Corner Radius (mm) | 1.60 |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | LD |
| ISO Number | SNXF1204ZNENLD |
| ANSI Number | SNXF43ZNENLD |
