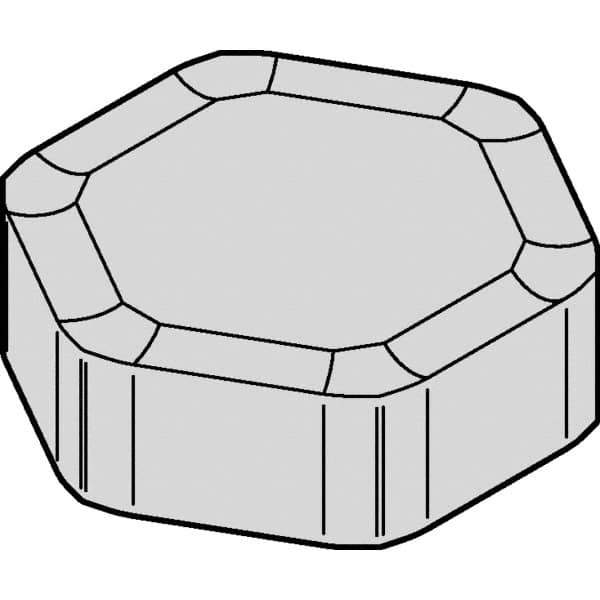

Kennametal - HNGF5351 MF Grade KCK20 Carbide Milling Insert - AlCrN Finish, 5.56mm Thick, 15.88mm Inscribed Circle, 0.4mm Corner Radius
Item #: 47388616
Brand: Kennametal
Model #: 6356881
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HNGF |
| Insert Size | 5351 |
| Material | Carbide |
| Manufacturer's Grade | KCK20 |
| Coating | AlCrN |
| Length (mm) | 9.16 |
| Inscribed Circle (mm) | 15.88 |
| Thickness (mm) | 5.56 |
| Corner Radius (mm) | 0.40 |
| Coating Process | MTCVD |
| Included Angle | 120 |
| Shape | Hexagon |
| Insert Hand | Neutral |
| Chipbreaker | MF |
| ISO Number | HNGF090504MF |
| ANSI Number | HNGF5351MF |
