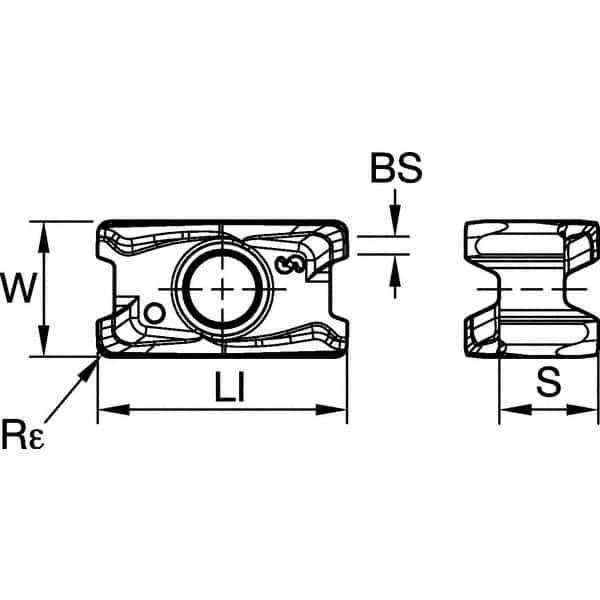

Kennametal - LNGU434 GEM Grade KCPK30 Carbide Milling Insert - Al2O3 Finish, 4.83mm Thick, 3.4mm Inscribed Circle, 1.6mm Corner Radius
Item #: 47388566
Brand: Kennametal
Model #: 6200730
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNGU |
| Insert Size | 434 |
| Material | Carbide |
| Manufacturer's Grade | KCPK30 |
| Coating | Al2O3 |
| Width (mm) | 6.60 |
| Length (mm) | 12.16 |
| Inscribed Circle (mm) | 3.40 |
| Thickness (mm) | 4.83 |
| Corner Radius (mm) | 1.60 |
| Hole Diameter (mm) | 3.40 |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Chipbreaker | GEM |
