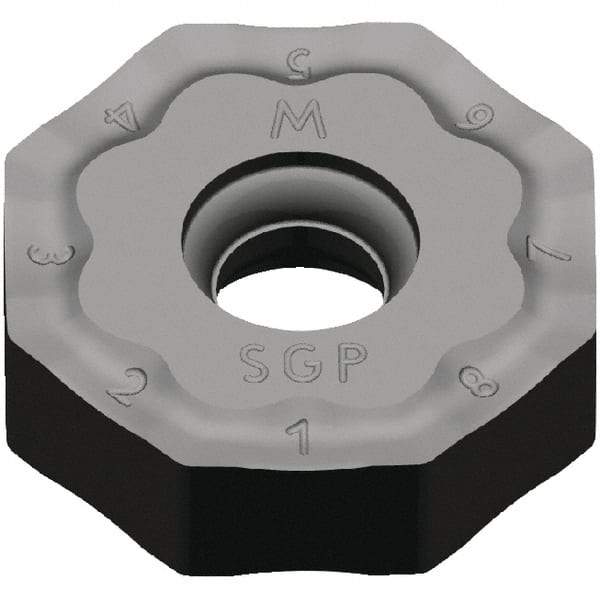

Kennametal - ONGX64 GP Grade KCK20 Carbide Milling Insert - TiN Finish, 5.81mm Thick, 20mm Inscribed Circle, 0.8mm Corner Radius
Item #: 47388418
Brand: Kennametal
Model #: 6406852
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ONGX |
| Insert Size | 64 |
| Material | Carbide |
| Manufacturer's Grade | KCK20 |
| Coating | TiN |
| Length (mm) | 8.21 |
| Inscribed Circle (mm) | 20.00 |
| Thickness (mm) | 5.81 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 5.70 |
| Rake Angle | 10 |
| Coating Process | MTCVD |
| Included Angle | 135 |
| Shape | Octagon |
| Insert Hand | Neutral |
| Chipbreaker | GP |
