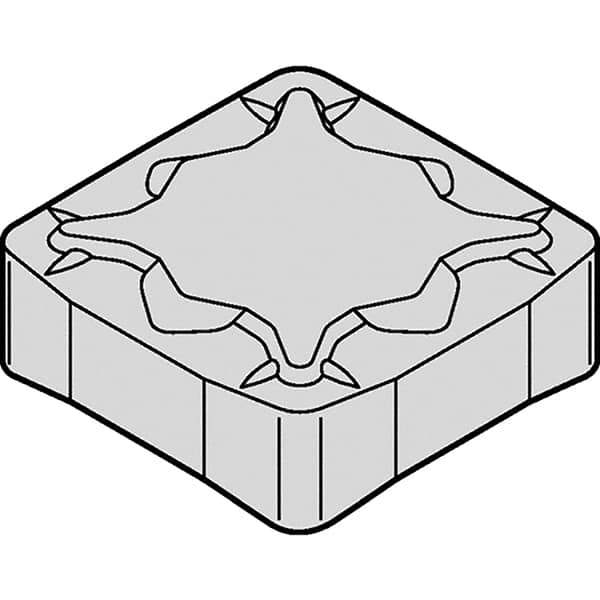

Kennametal - SNXF433 HE Grade KCPK30 Carbide Milling Insert - Al2O3 Finish, 4.66mm Thick, 1/2" Inscribed Circle, 1.2mm Corner Radius
Item #: 47388343
Brand: Kennametal
Model #: 6397611
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNXF |
| Insert Size | 433 |
| Material | Carbide |
| Manufacturer's Grade | KCPK30 |
| Coating | Al2O3 |
| Width (Inch) | 1/2 |
| Length (Inch) | 1/2 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (mm) | 4.66 |
| Corner Radius (mm) | 1.20 |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | HE |
| ISO Number | SNXF120412SNHE |
| ANSI Number | SNXF433SNHE |
